Cornell Dubilier / Illinois Capacitor
CAP ALUM 2200UF 20% 80V SNAP

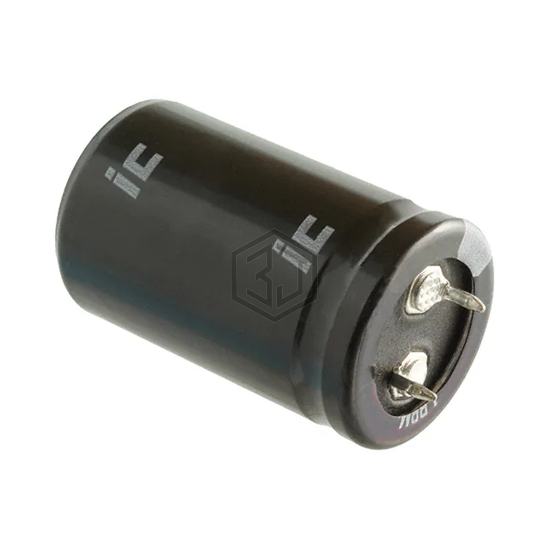

228LBB080M2BF is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,584
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 113.04mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS1K222MESA | Nichicon | CAP ALUM 2200UF 20% 80V SNAP | 100% | View |
| EKMH101VNN222MA30S | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 92% | View |
| 515D228M063FV6AE3 | Vishay Sprague | CAP ALUM 2200UF 20% 63V RADIAL | 86% | View |
| EKMH630VSN222MQ30S | United Chemi-Con | CAP ALUM 2200UF 20% 63V SNAP | 76% | View |
| 25YXH2200MEFCG412.5X35 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 73% | View |
| ELXZ350ELL222MM25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 72% | View |
Submit your RFQ for 228LBB080M2BF and get a quote within 24 hours.
