Cornell Dubilier / Illinois Capacitor

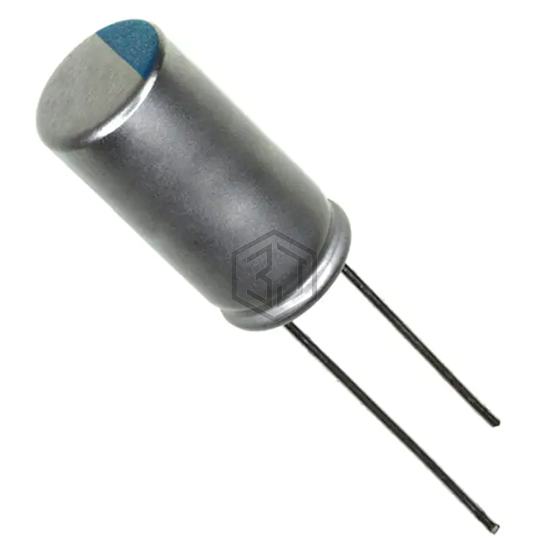

CAP ALUM POLY 220UF 20% 10V T/H
227ULR010MEW is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 220UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,023
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A759EK227M1AAAE018 | KEMET | CAP ALUM POLY 220UF 20% 10V TH | 83% | View |
| A758BG227M0JAAE018 | KEMET | CAP ALUM POLY 220UF 20% 6.3V T/H | 78% | View |
| PLX1C221MDL1 | Nichicon | CAP ALUM POLY 220UF 20% 16V T/H | 77% | View |
| APSA6R3ETD221MFA5G | United Chemi-Con | CAP ALUM POLY 220UF 20% 6.3V T/H | 76% | View |
| PLF0J221MDL4 | Nichicon | CAP ALUM POLY 220UF 20% 6.3V T/H | 75% | View |
| 227ALG050MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 50V T/H | 72% | View |
Submit your RFQ for 227ULR010MEW and get a quote within 24 hours.
