Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 22UF 20% 25V T/H

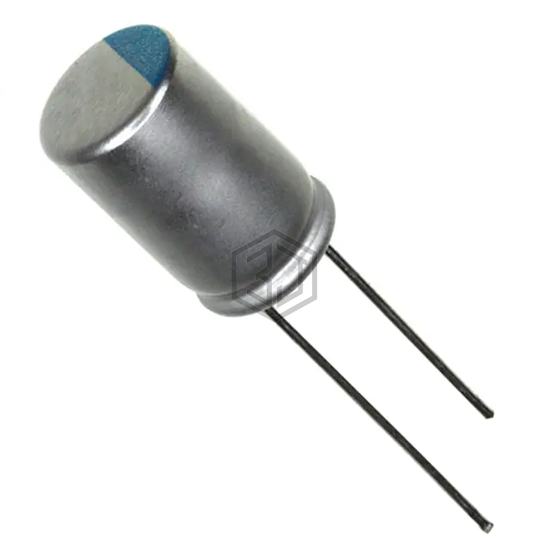

226ULG025MEF is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 22UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,682
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 55mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A758EK226M1EAAE050 | KEMET | CAP ALUM POLY 22UF 20% 25V T/H | 95% | View |
| 226ULR025MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 22UF 20% 25V T/H | 95% | View |
| PLF1D220MCL2TP | Nichicon | CAP ALUM POLY 22UF 20% 20V T/H | 91% | View |
| 20SEP22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 20V T/H | 86% | View |
| 226ULR010MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 22UF 20% 10V T/H | 74% | View |
| RNS1D220MDS1JT | Nichicon | CAP ALUM POLY 22UF 20% 20V T/H | 71% | View |
