Cornell Dubilier / Illinois Capacitor
CAP ALUM 22UF 20% 350V RADIAL

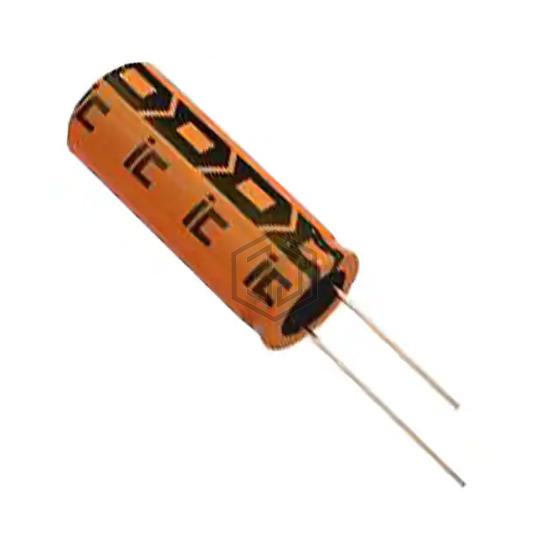

226TXK350M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 1,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 15.0715Ohm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 240 mA @ 120 Hz |
| Ripple Current @ High Frequency | 540 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-ED2V220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 350V RADIAL | 92% | View |
| EEU-ED2E220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 250V RADIAL | 87% | View |
| 400BXC22MEFC12.5X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 82% | View |
| B43866C4226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 350V RADIAL | 75% | View |
| 200WXA22MEFCG412.5X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 53% | View |
| 226CKE160MLN | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 160V RADIAL | 51% | View |
