Cornell Dubilier / Illinois Capacitor

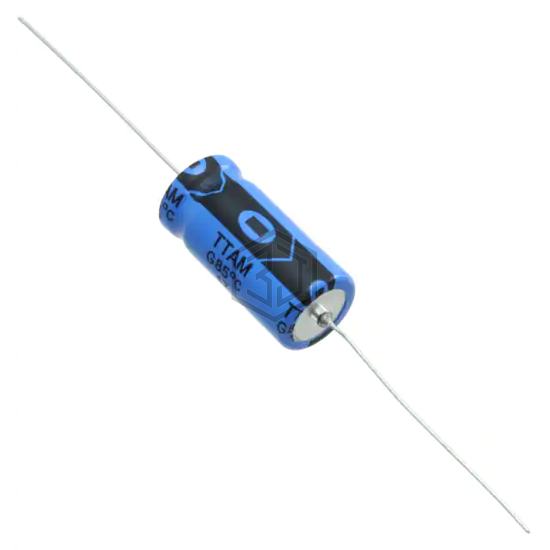

CAP ALUM 22UF 20% 50V AXIAL
226TTA050M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 50V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Axial, Can.
In Stock: 4,419
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 9.0429Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130.05 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 91% | View |
| 50ZL22MEFC6.3X7 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 87% | View |
| UFG1V220MEM1TA | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 79% | View |
| UBT1H220MPD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 75% | View |
| EEU-TA1J220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 52% | View |
| EKXF161ELL220MJC5S | United Chemi-Con | CAP ALUM 22UF 20% 160V RADIAL TH | 50% | View |
Submit your RFQ for 226TTA050M and get a quote within 24 hours.
