Cornell Dubilier / Illinois Capacitor

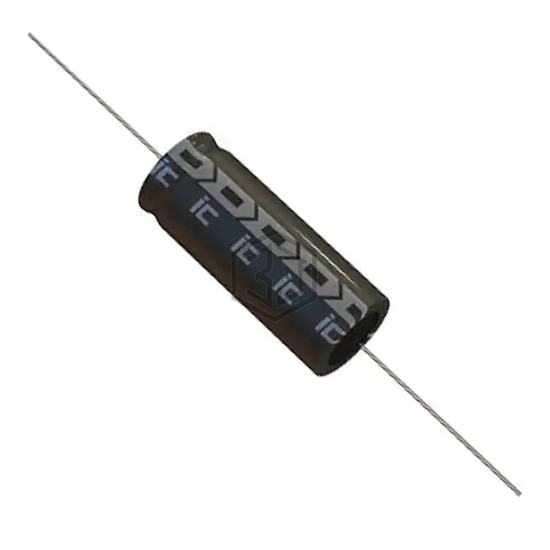

CAP ALUM 22UF 20% 450V AXIAL
226TMA450M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 450V AXIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Axial, Can.
In Stock: 5,969
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 18.839Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 260 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia x 1.575" L (16.00mm x 40.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43896A9226M003 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 400V RADIAL | 95% | View |
| ESH226M400AM7AA | KEMET | CAP ALUM RAD 105C | 92% | View |
| UAQ2G220MHD6TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 91% | View |
| EKMQ451ELL220MK25S | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 85% | View |
| UBT2C220MPD8 | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 71% | View |
| ELXV101ETD220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 57% | View |
Submit your RFQ for 226TMA450M and get a quote within 24 hours.
