Cornell Dubilier / Illinois Capacitor

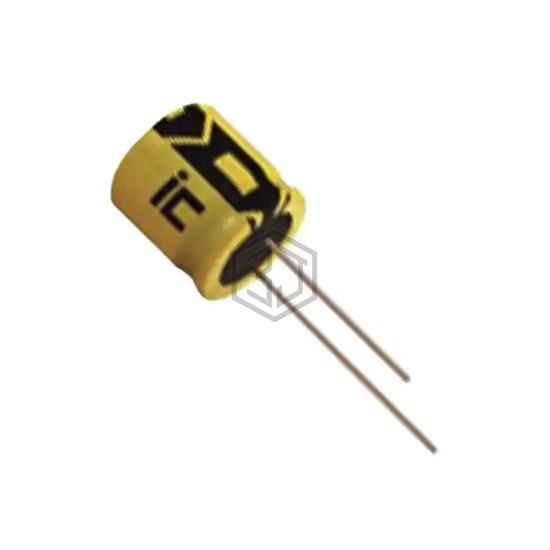

CAP ALUM 22UF 20% 50V RADIAL
226PUM050M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,803
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 7.536Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 58 mA @ 120 Hz |
| Ripple Current @ High Frequency | 87 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMA1H220MDD1TE | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 95% | View |
| UTT1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 92% | View |
| B41821A6226M7 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 50V RADIAL | 84% | View |
| 16MH722MEFC5X7 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 62% | View |
| ECE-A1AKA220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V RADIAL | 59% | View |
| MAL202129229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V AXIAL | 54% | View |
