Cornell Dubilier / Illinois Capacitor
CAP ALUM 22UF 20% 16V RADIAL

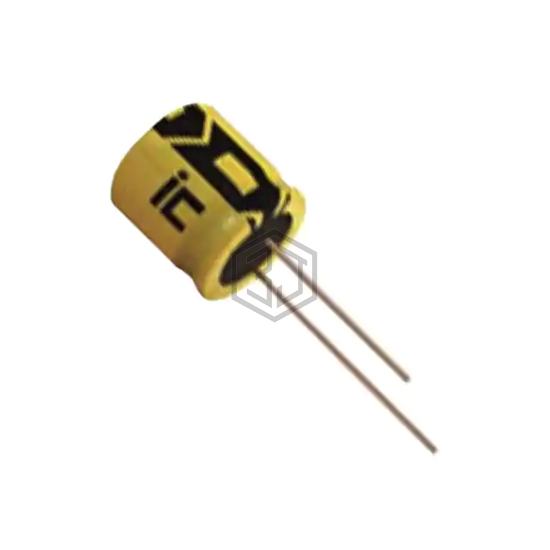

226PUM016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 12.057Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULM22M16 | NTE Electronics, Inc | CAP ALUM 22UF 20% 16V RADIAL | 100% | View |
| ESH226M016AC3AA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 100% | View |
| UPW1E220MDD6 | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 78% | View |
| MAL213430229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V RADIAL | 71% | View |
| USA0J220MDD1TP | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 66% | View |
| 672D226H050CD5D | Vishay Sprague | CAP ALUM 22UF 50V RADIAL | 56% | View |
Submit your RFQ for 226PUM016M and get a quote within 24 hours.
