Cornell Dubilier / Illinois Capacitor
CAP ALUM 22UF 20% 63V RADIAL

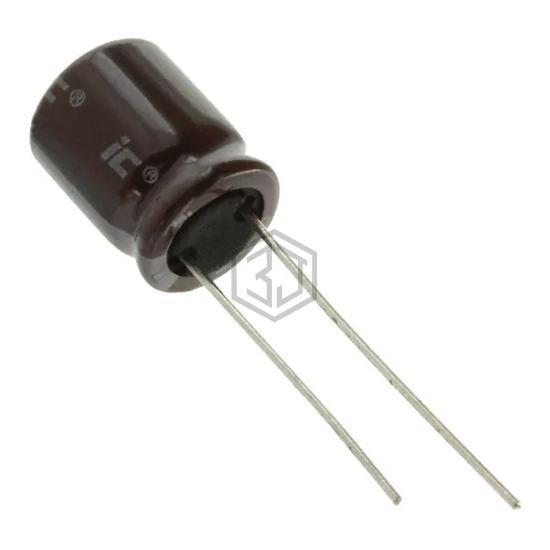

226CKH063M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 6.7822Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 207 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1J220MDD1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 85% | View |
| ESH226M050AC3FA | KEMET | CAP ALUM RAD 105C | 81% | View |
| MAL214271229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V RADIAL | 72% | View |
| 517D226M250DK6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 250V RADIAL | 62% | View |
| 860240572002 | Würth Elektronik | CAP ALUM 22UF 20% 35V RADIAL | 61% | View |
| UKL1A220MDDANA | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for 226CKH063M and get a quote within 24 hours.
