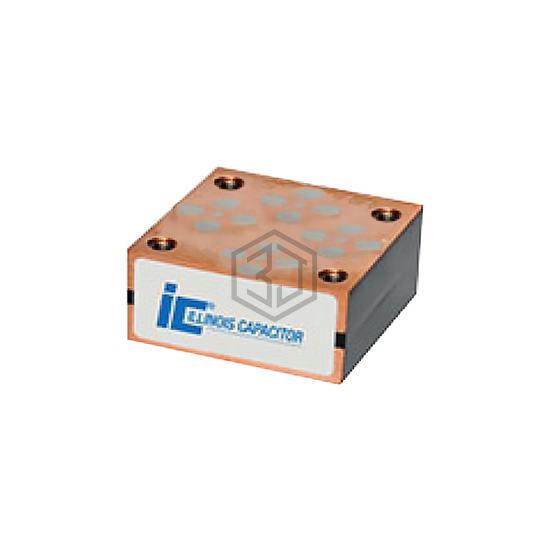

Cornell Dubilier / Illinois Capacitor
CAP FILM 0.2UF 10% 1KVAC CHAS MT
204HC3102K4VM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.2UF 10% 1KVAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 1000V (1kV), package / case Nonstandard.
In Stock: 3,723
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.2 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.953" L x 1.969" W (75.00mm x 50.00mm) |
| Height - Seated (Max) | 1.193" (30.30mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 204HC3102K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.2UF 10% 1KVAC CHAS MT | 100% | View |
| 204HC4102K2UM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.2UF 10% 1KVAC CHAS MT | 100% | View |
| 204HC3B102K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.2UF 10% 1KVAC CHASSIS | 100% | View |
| 204LC3102KL505HM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.2UF 10% 1KVAC SMD | 100% | View |
| 204HC3102K4TM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.2UF 10% 1KVAC CHAS MT | 100% | View |
| BFC238670184 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 10% 2.5KVDC SCRW | 87% | View |
Submit your RFQ for 204HC3102K4VM6 and get a quote within 24 hours.
