Cornell Dubilier / Illinois Capacitor

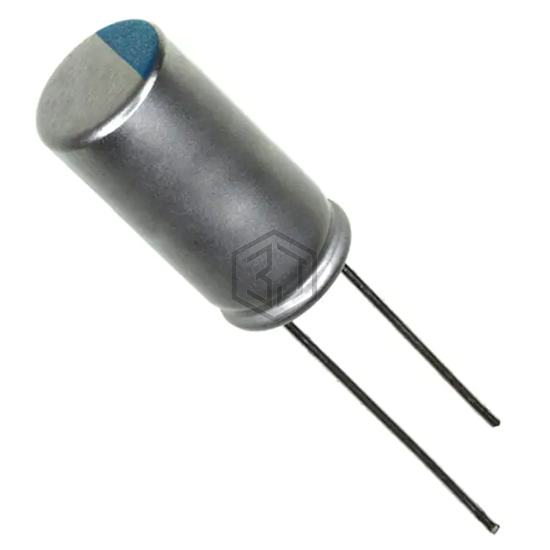

CAP ALUM POLY 180UF 20% 16V T/H
187ULR016MFH is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 180UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870235374003 | Würth Elektronik | CAP ALUM POLY 180UF 20% 16V T/H | 99% | View |
| APS-160EC3181MHB5S | United Chemi-Con | CAP ALUM POLY 180UF 20% 16V T/H | 96% | View |
| 187ULG016MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 180UF 20% 16V T/H | 93% | View |
| UPE1C181MP26305 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 86% | View |
| RNS1C181MDN1KX | Nichicon | CAP ALUM POLY 180UF 20% 16V T/H | 83% | View |
| 25SEPF180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 25V T/H | 83% | View |
Submit your RFQ for 187ULR016MFH and get a quote within 24 hours.
