Cornell Dubilier / Illinois Capacitor

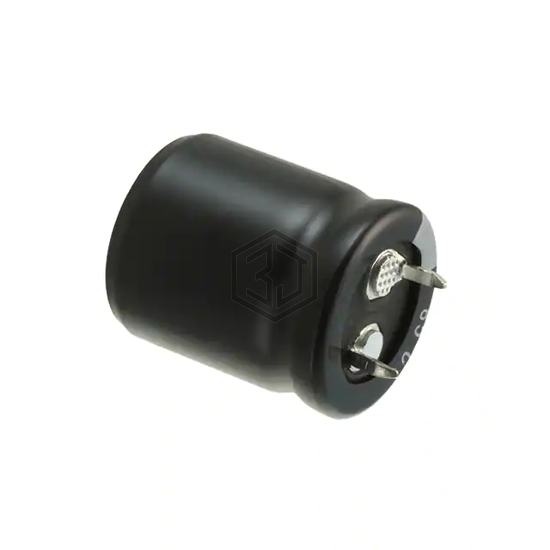

CAP ALUM 1500UF 20% 63V SNAP
158LBB063M2BC is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 1500UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 165.786mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.66 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.075 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100VXG1500MEFCSN22X50 | Rubycon | CAP ALUM 1500UF 20% 100V SNAP | 79% | View |
| LKG1K152MESBBK | Nichicon | CAP ALUM 1500UF 20% 80V SNAP | 75% | View |
| MAL224650152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 75% | View |
| B41252B9158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 100V SNAP | 71% | View |
| MAL202127152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 40V AXIAL | 68% | View |
| MAL212025152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V AXIAL | 63% | View |
Submit your RFQ for 158LBB063M2BC and get a quote within 24 hours.
