Cornell Dubilier / Illinois Capacitor

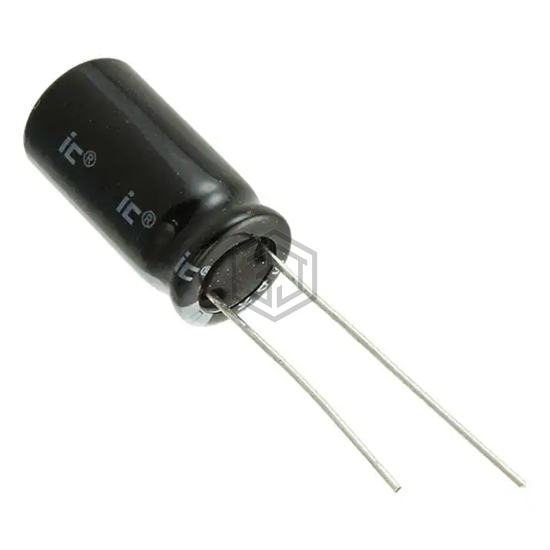

CAP ALUM 1500UF 20% 16V RADIAL
158CKS016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 1500UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,822
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 199mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.025 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.435 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS1C152MHD1TO | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 95% | View |
| 16YXG1500MEFC10X28 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 90% | View |
| LXZ10VB152M10X25LL | United Chemi-Con | CAP ALUM 1500UF 20% 10V RADIAL | 82% | View |
| EEU-FR1C152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 16V RADIAL | 71% | View |
| 381LX152M050H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 50V SNAP | 65% | View |
| MAL215051152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 56% | View |
