Cornell Dubilier / Illinois Capacitor

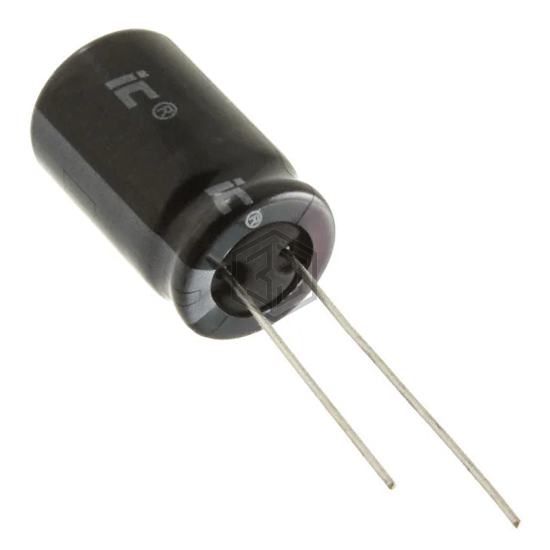

CAP ALUM 1500UF 20% 25V RADIAL
158CKH025M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 1500UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,794
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 176.8mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 905 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.267 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ250ETE152MK25S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 84% | View |
| 158CKE035MTJD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 35V RADIAL | 79% | View |
| ELXV6R3ELL152MJ25S | United Chemi-Con | CAP ALUM 1500UF 20% 6.3V RADIAL | 78% | View |
| UPA0J152MPD1TD | Nichicon | CAP ALUM 1500UF 20% 6.3V RADIAL | 75% | View |
| UPA0J152MPD1TA | Nichicon | CAP ALUM 1500UF 20% 6.3V RADIAL | 75% | View |
| 16YXH1500MEFC16X16 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 70% | View |
