Cornell Dubilier / Illinois Capacitor
CAP ALUM 1500UF 20% 16V RADIAL

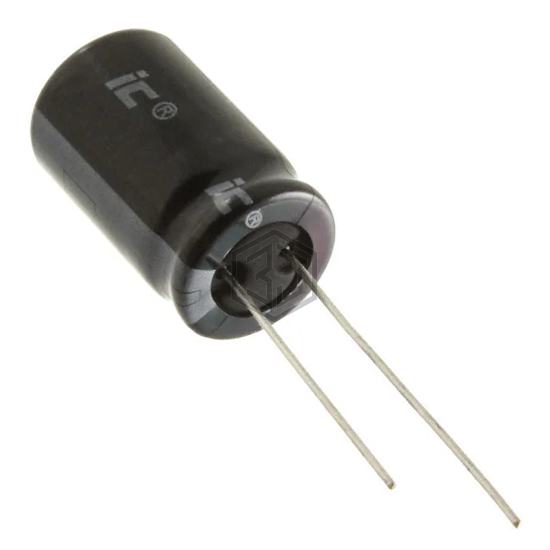

158CKH016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 1500UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,048
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 198.9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESH158M010AH4AA | KEMET | CAP ALUM RAD 105C | 81% | View |
| 6.3ZLQ1500MEFC8X16 | Rubycon | CAP ALUM 1500UF 20% 6.3V RADIAL | 73% | View |
| ECO-S1VA152BA | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V SNAP | 68% | View |
| 6.3ZL1500MEFC10X20 | Rubycon | CAP ALUM 1500UF 20% 6.3V RADIAL | 61% | View |
| 158KXM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 10V RADIAL | 59% | View |
| 860020680028 | Würth Elektronik | CAP ALUM 1500UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for 158CKH016M and get a quote within 24 hours.
