Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 1500UF 20% 16V T/H

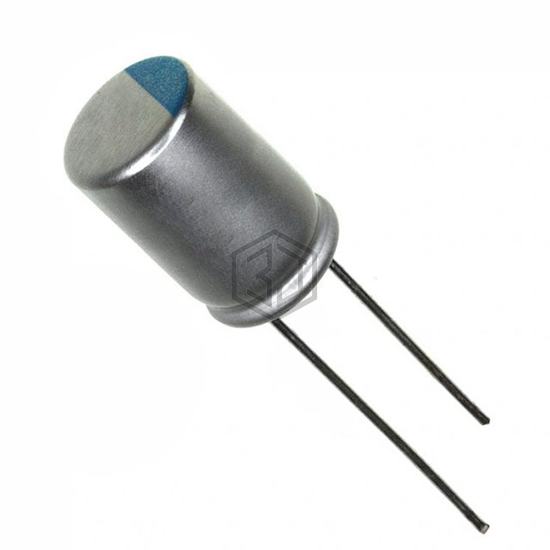

158ALG016MGBJ is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 1500UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 11mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URH1C152MNN0820 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| URH1C152MP30820U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| URH1C152MP51012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 99% | View |
| 158AVG016MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1500UF 20% 16V T/H | 96% | View |
| URH1D152MP51020U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 84% | View |
| URH1C222MP51020U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
Submit your RFQ for 158ALG016MGBJ and get a quote within 24 hours.
