Cornell Dubilier / Illinois Capacitor

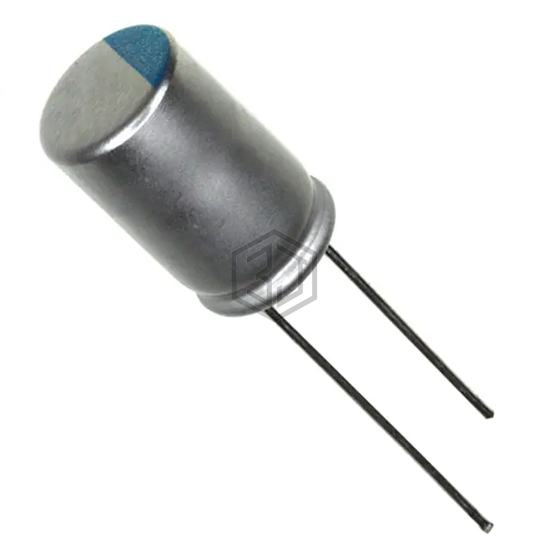

CAP ALUM POLY 150UF 20% 20V T/H
157ULG020MGU is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 150UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 1,409
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 133.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.672 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 157AVG025MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 25V T/H | 89% | View |
| 16SEPC150MD | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 16V T/H | 84% | View |
| 16SEPC150MD+S | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 16V T/H | 84% | View |
| PLF1D151MDO2TD | Nichicon | CAP ALUM POLY 150UF 20% 20V T/H | 84% | View |
| 6SEP150M | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 6.3V T/H | 77% | View |
| 6SEQP150M | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 6.3V T/H | 77% | View |
Submit your RFQ for 157ULG020MGU and get a quote within 24 hours.
