Cornell Dubilier / Illinois Capacitor

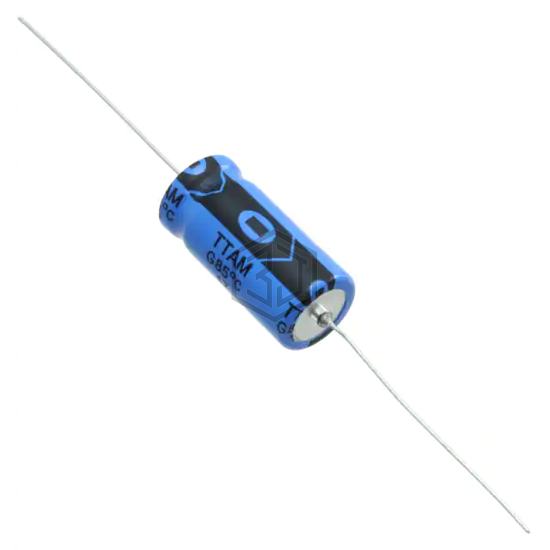

CAP ALUM 15UF 20% 50V AXIAL
156TTA050M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 15UF 20% 50V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Axial, Can.
In Stock: 2,520
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 13.2629Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 107.1 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia x 0.512" L (5.00mm x 13.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1H150 | Panasonic Electronic Components | CAP ALUM 15UF 20% 50V RADIAL | 89% | View |
| MALREKA00AA215JL0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 63V RADIAL | 83% | View |
| UKL1H150KEDANA | Nichicon | CAP ALUM 15UF 10% 50V RADIAL | 79% | View |
| ESH156M035AC3AA | KEMET | CAP ALUM RAD 105C | 79% | View |
| EKYA101ELL150MF11D | United Chemi-Con | CAP ALUM 15UF 20% 100V RADIAL | 60% | View |
| 160LEX15MEFC10X9 | Rubycon | CAP ALUM 15UF 20% 160V RADIAL | 59% | View |
Submit your RFQ for 156TTA050M and get a quote within 24 hours.
