Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 15UF 20% 100V T/H

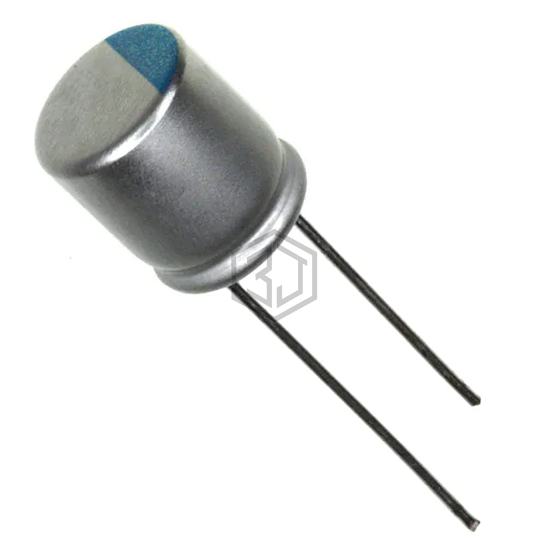

156AVG100MFBJ is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 15UF 20% 100V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 92.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.85 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A759KS156M2AAAE052 | KEMET | CAP ALUM POLY 15UF 20% 100V T/H | 100% | View |
| 100SXE15MX | Panasonic Electronic Components | CAP ALUM POLY 15UF 20% 100V T/H | 96% | View |
| 100SXE15M | Panasonic Electronic Components | CAP ALUM POLY 15UF 20% 100V T/H | 89% | View |
| A759MS156M2CAAE094 | KEMET | CAP ALUM POLY 15UF 20% 160V T/H | 78% | View |
| 100SXE18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 100V T/H | 70% | View |
| A759KK186M1KAAE075 | KEMET | CAP ALUM POLY 18UF 20% 80V T/H | 59% | View |
Submit your RFQ for 156AVG100MFBJ and get a quote within 24 hours.
