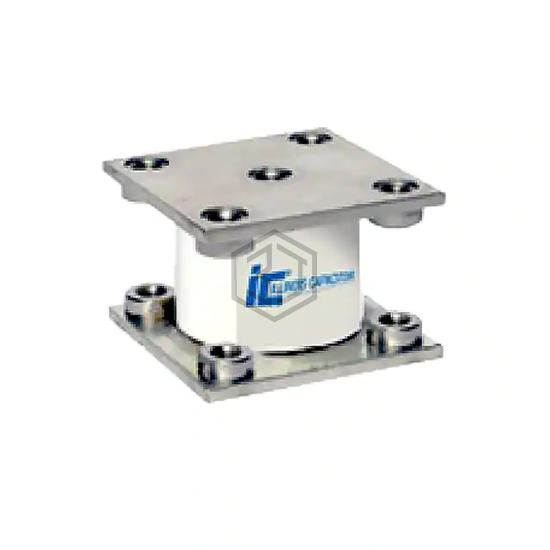

Cornell Dubilier / Illinois Capacitor
CAP FILM 1.5UF 500VAC CHAS MT
155LC2500K5HM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1.5UF 500VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 500V, package / case Nonstandard.
In Stock: 4,129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.3 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32656S0155K566 | EPCOS - TDK Electronics | CAP FILM 1.5UF 10% 1KVDC SCREW | 99% | View |
| MKP386M515085JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 850VDC SCREW | 98% | View |
| MKP386M515085JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 850VDC SCREW | 98% | View |
| PMB2104150KFR | Nichicon | FILM CAP BOXED LUGS | 98% | View |
| MKP386M515160JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 1.6KVDC SCREW | 97% | View |
| PMB1704150KBP | Nichicon | FILM CAP BOXED LUGS | 97% | View |
