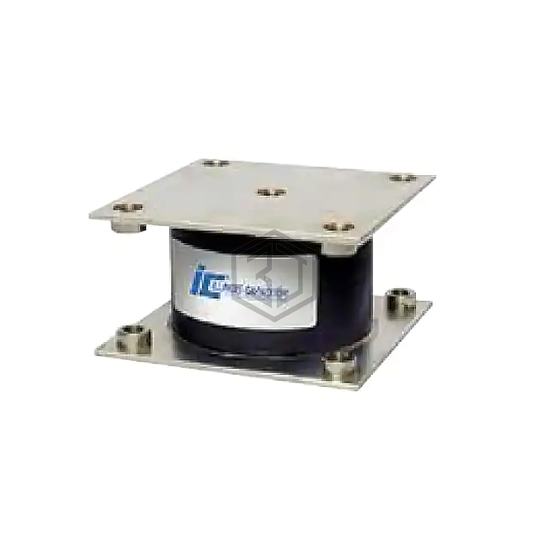

Cornell Dubilier / Illinois Capacitor
CAP FILM 1.4UF 1.1KVAC CHAS MT
145LC5112K5PM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1.4UF 1.1KVAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 1100V (1.1kV), package / case Nonstandard.
In Stock: 4,115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.4 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1100V (1.1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.2 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.937" L x 3.937" W (100.00mm x 100.00mm) |
| Height - Seated (Max) | 2.146" (54.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 145HC5112KR | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.4UF 10% 1.1KVAC AXIAL | 100% | View |
| 135LC6900K5PM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.33UF 900VAC CHAS MT | 91% | View |
| 135HC6700K4TM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.33UF 700VAC CHAS MT | 87% | View |
| 135HC6700K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.33UF 700VAC CHAS MT | 87% | View |
| B32656S7145K561 | EPCOS - TDK Electronics | CAP FILM 1.4UF 10% 1.25KVDC SCRW | 86% | View |
| MKP386M515200YT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 2KVDC SCREW | 85% | View |
Submit your RFQ for 145LC5112K5PM8 and get a quote within 24 hours.
