Cornell Dubilier / Illinois Capacitor

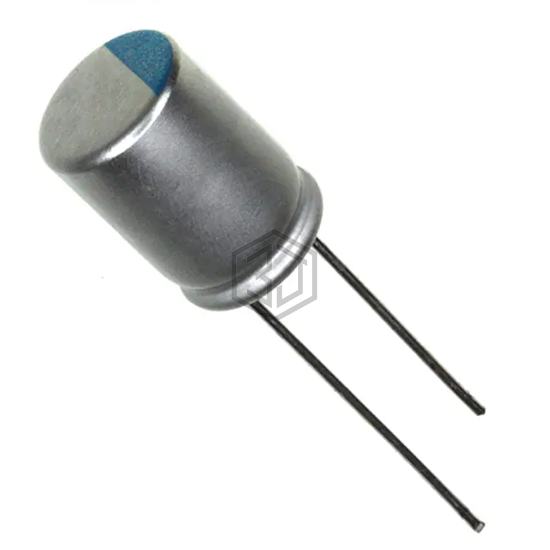

CAP ALUM POLY 1200UF 20% 10V T/H
128UER010MGU is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 1200UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,635
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLG1A122MDO1 | Nichicon | CAP ALUM POLY 1200UF 20% 10V T/H | 93% | View |
| PLG1A122MDO1TD | Nichicon | CAP ALUM POLY 1200UF 20% 10V T/H | 93% | View |
| 128AVG016MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1200UF 20% 16V T/H | 80% | View |
| 128ALG016MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1200UF 20% 16V T/H | 76% | View |
| PLF0E122MDO1TD | Nichicon | CAP ALUM POLY 1200UF 2.5V T/H | 70% | View |
| A750KR128M0GAAE007 | KEMET | CAP ALUM POLY 1200UF 20% 4V T/H | 69% | View |
Submit your RFQ for 128UER010MGU and get a quote within 24 hours.
