Cornell Dubilier / Illinois Capacitor

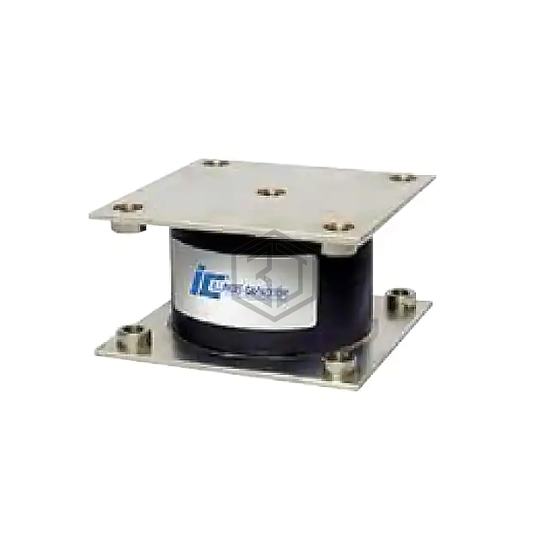

CAP FILM 1.2UF 1.1KVAC CHAS MT
125LC5112K5PM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1.2UF 1.1KVAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 1100V (1.1kV), package / case Nonstandard.
In Stock: 2,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1100V (1.1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.937" L x 3.937" W (100.00mm x 100.00mm) |
| Height - Seated (Max) | 2.146" (54.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 125HC5112KR | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.2UF 10% 1.1KVAC AXIAL | 100% | View |
| C4BSPBX4120ZB0J | KEMET | CAP FILM 1.2UF 5% 1.2KVDC SCREW | 90% | View |
| PMB2124120KBP | Nichicon | FILM CAP BOXED LUGS | 90% | View |
| PMB2124120KBN | Nichicon | FILM CAP BOXED LUGS | 90% | View |
| 125LC3600K5LM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.2UF 10% 600VAC SMD | 89% | View |
| MKP386M512125JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 1.25KVDC SCREW | 88% | View |
Submit your RFQ for 125LC5112K5PM8 and get a quote within 24 hours.
