Cornell Dubilier / Illinois Capacitor

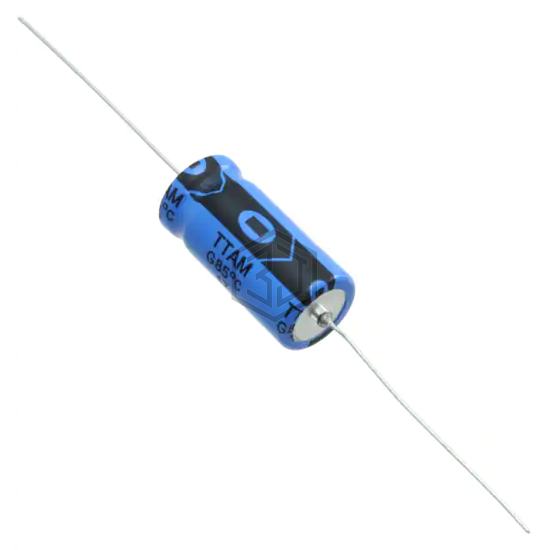

CAP ALUM 10000UF 20% 16V AXIAL
109TTA016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 16V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Axial, Can.
In Stock: 2,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 63mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2256 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia x 1.614" L (18.00mm x 41.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXG10000MEFCGC18X40 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 89% | View |
| VHT10000M10 | NTE Electronics, Inc | CAP ALUM 10000UF 20% 10V RADIAL | 70% | View |
| MAL211814103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V AXIAL | 69% | View |
| EKMQ100ELL103MLN3S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 66% | View |
| MAL205156103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 25V RADIAL | 61% | View |
| 381LQ103M063K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 55% | View |
Submit your RFQ for 109TTA016M and get a quote within 24 hours.
