Cornell Dubilier / Illinois Capacitor

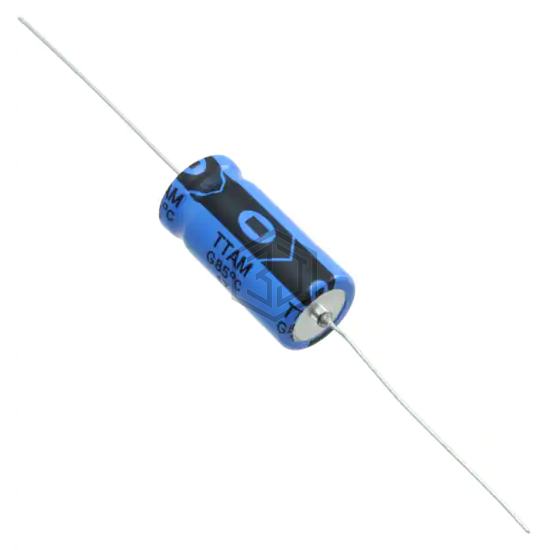

CAP ALUM 10000UF 20% 10V AXIAL
109TTA010M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 10V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Axial, Can.
In Stock: 9,485
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 63mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.008 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia x 1.614" L (18.00mm x 41.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25MXC10000MEFCSN25X30 | Rubycon | CAP ALUM 10000UF 20% 25V SNAP | 76% | View |
| 16WA10000MEFCGC18X25 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 70% | View |
| MAL205875103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 68% | View |
| 6.3YXF10000MEFCGC16X31.5 | Rubycon | CAP ALUM 10000UF 20% 6.3V RADIAL | 67% | View |
| MAL205651103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 50V SNAP | 54% | View |
| ALC10C103EC063 | KEMET | CAP ALUM 10000UF 20% 63V SNAP | 52% | View |
