Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 10V RADIAL

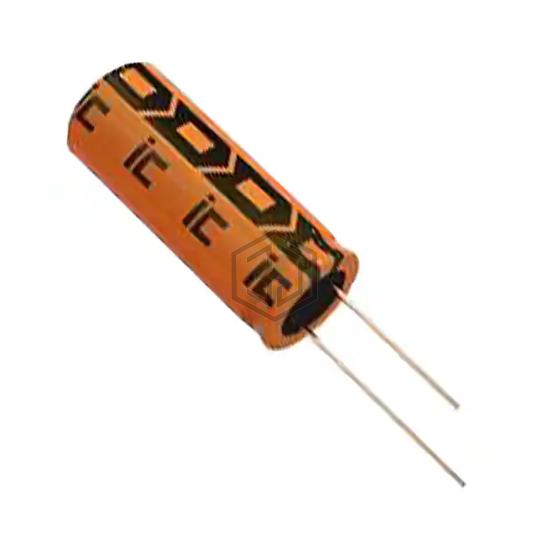

109RZM010M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,658
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 66mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 75 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
109RZM010M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1A103B | Panasonic Electronic Components | CAP ALUM 10000UF 20% 10V RADIAL | 100% | View |
| RJA103M1ABK-1632S | Surge | CAP ALUM 10V POLAR | 100% | View |
| UPW1A103MHD | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 75% | View |
| 601D109G015JS2 | Vishay Sprague | CAP ALUM 10000UF 15V AXIAL | 74% | View |
| KMG6.3VB103M16X25LL | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 70% | View |
| 601D109F025JS3 | Vishay Sprague | CAP ALUM 10000UF 25V AXIAL | 56% | View |
Submit your RFQ for 109RZM010M and get a quote within 24 hours.
