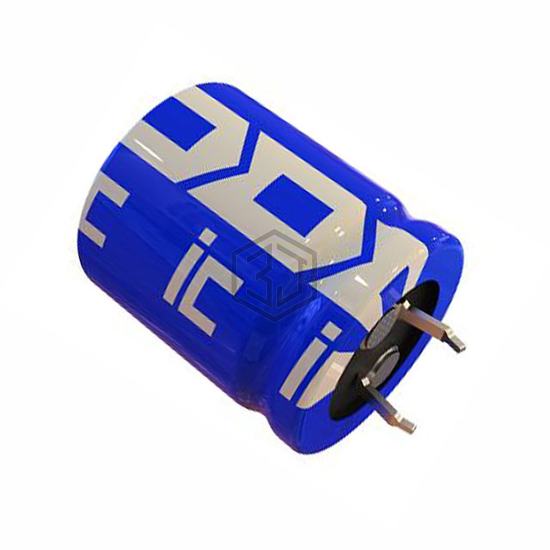

Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 63V SNAP
109LMU063M2EH is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,228
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 49.74mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
109LMU063M2EH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VSN103MA50S | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 98% | View |
| MAL225658103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V SNAP | 94% | View |
| MAL215876103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 25V SNAP | 65% | View |
| MAL205825103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 65% | View |
| MAL215815103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 64% | View |
| LP103M035C4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 35V SNAP | 62% | View |
