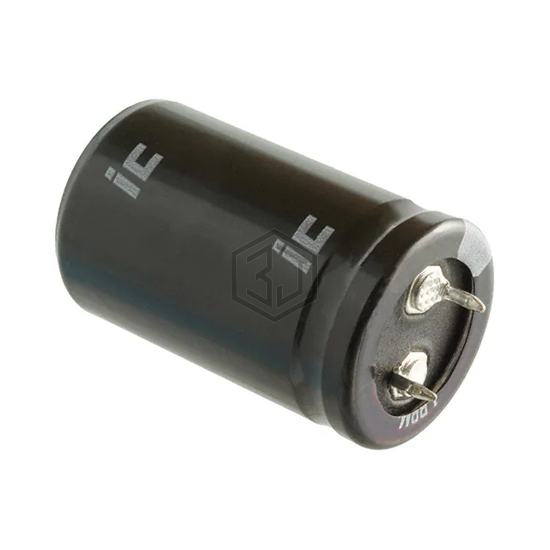

Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 63V SNAP
109LBB063M2DG is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 8,136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 24.87mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.65 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 109LMB050M2EF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 50V SNAP | 89% | View |
| 382LX103M080A062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 80V SNAP | 85% | View |
| EEU-FC1A103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 10V RADIAL | 69% | View |
| 10YXG10000MEFC16X40 | Rubycon | CAP ALUM 10000UF 20% 10V RADIAL | 69% | View |
| 80D103P025JE2DE3 | Vishay Sprague | CAP ALUM 10000UF 25V SNAP | 64% | View |
| 53D103G035HS7 | Vishay Sprague | CAP ALUM 10000UF 35V AXIAL | 62% | View |
