Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 25V SNAP

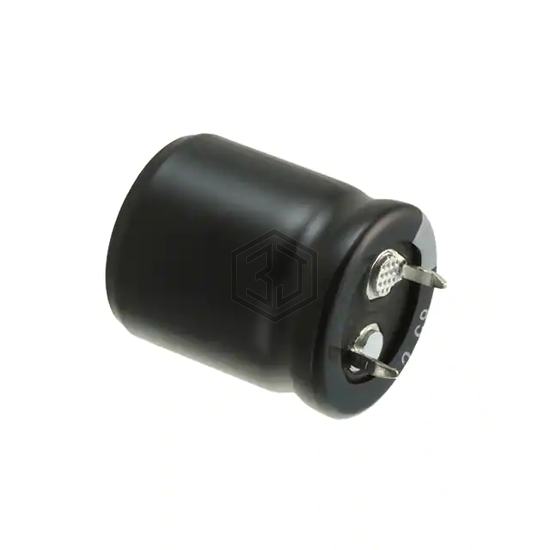

109LBB025M2DC is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 5,854
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 49.736mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.0125 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXG10000MEFCGC18X40 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 83% | View |
| MAL205655103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 80% | View |
| 381LQ103M063K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 66% | View |
| MAL215611103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 50V SNAP | 62% | View |
| 50USG10000MEFCSN35X30 | Rubycon | ELECTROLYTIC CAPACITOR | 60% | View |
| MAL214234103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for 109LBB025M2DC and get a quote within 24 hours.
