Cornell Dubilier / Illinois Capacitor

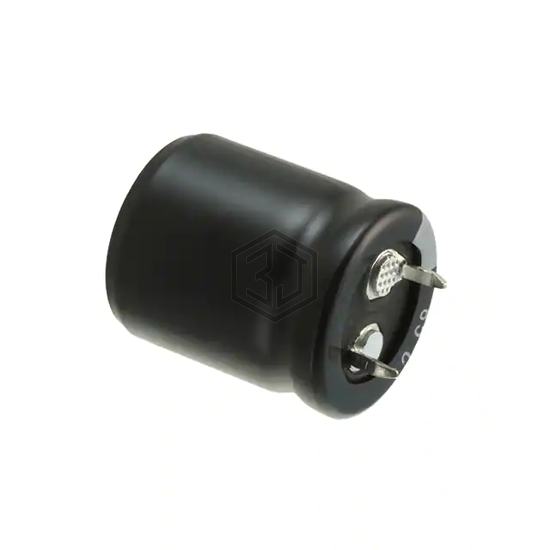

CAP ALUM 10000UF 20% 25V SNAP
109LBB025M2CD is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 8,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 49.736mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.9 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VSN103MP40U | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 84% | View |
| 6.3ZLQ10000MEFC12.5X35 | Rubycon | CAP ALUM 10000UF 20% 6.3V RADIAL | 75% | View |
| THAS103M016AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V FLATPCK | 75% | View |
| 109KBM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 10V RADIAL | 75% | View |
| VHT10000M16 | NTE Electronics, Inc | CAP ALUM 10000UF 20% 16V RADIAL | 71% | View |
| 16WXA10000MEFCGC18X25 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 71% | View |
Submit your RFQ for 109LBB025M2CD and get a quote within 24 hours.
