Cornell Dubilier / Illinois Capacitor

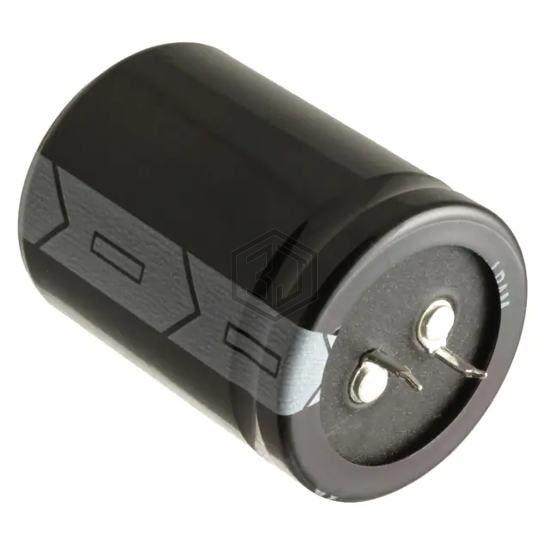

CAP ALUM 10000UF 20% 63V SNAP
109LBA063M2EG is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 49.74mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.5 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH630VNN103MA40T | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 99% | View |
| ESMH500VNN103MA35U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 87% | View |
| ESMH500VNN103MR45S | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 87% | View |
| 380LX103M035H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 35V SNAP | 72% | View |
| EKMH350VSS103MR35S | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 51% | View |
| EKMH350VSN103MR35S | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 51% | View |
Submit your RFQ for 109LBA063M2EG and get a quote within 24 hours.
