Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 16V RADIAL

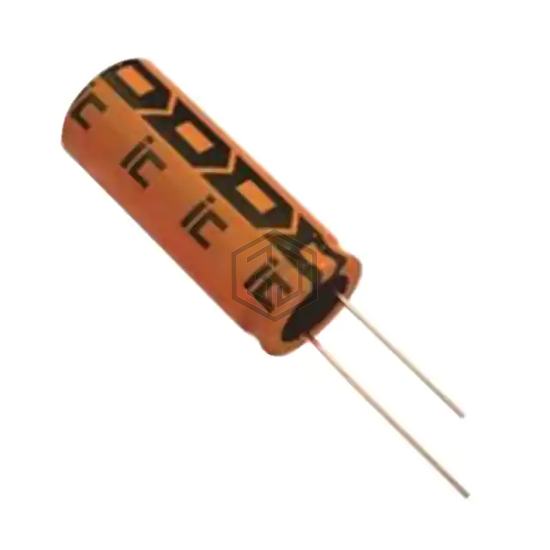

109CKS016MQY is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.886 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN100ELL103MLP1S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 82% | View |
| B41252A5109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 25V SNAP | 74% | View |
| EKMH630VQD103MA50U | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 72% | View |
| 25USC10000MEFCSN30X25 | Rubycon | CAP ALUM 10000UF 20% 25V SNAP | 71% | View |
| 63USC10000MEFC35X40 | Rubycon | CAP ALUM 10000UF 20% 63V SNAP | 62% | View |
| MAL216257103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V SNAP | 60% | View |
Submit your RFQ for 109CKS016MQY and get a quote within 24 hours.
