Cornell Dubilier / Illinois Capacitor

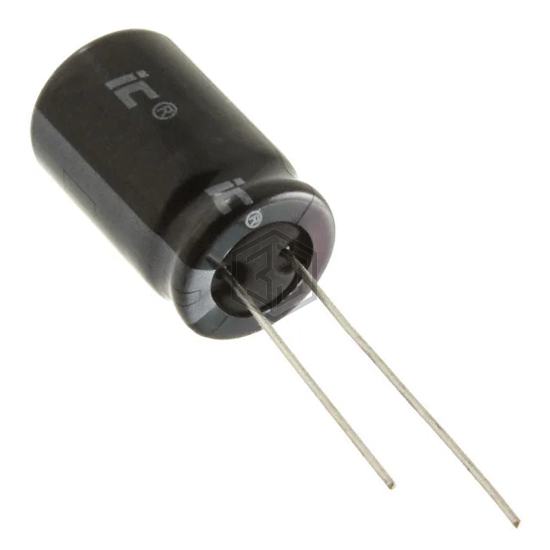

CAP ALUM 10000UF 20% 6.3V RADIAL
109CKH6R3M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 66.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.73 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.422 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ250ELL103MM40S | United Chemi-Con | CAP ALUM 10000UF 20% 25V RADIAL | 73% | View |
| 381LX103M016H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V SNAP | 58% | View |
| 381LX103M025K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 25V SNAP | 57% | View |
| 35VXG10000MEFC30X40 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 57% | View |
| B41252A5109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 25V SNAP | 56% | View |
| 35MXC10000MEFC30X30 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 56% | View |
Submit your RFQ for 109CKH6R3M and get a quote within 24 hours.
