Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 1000UF 20% 4V T/H

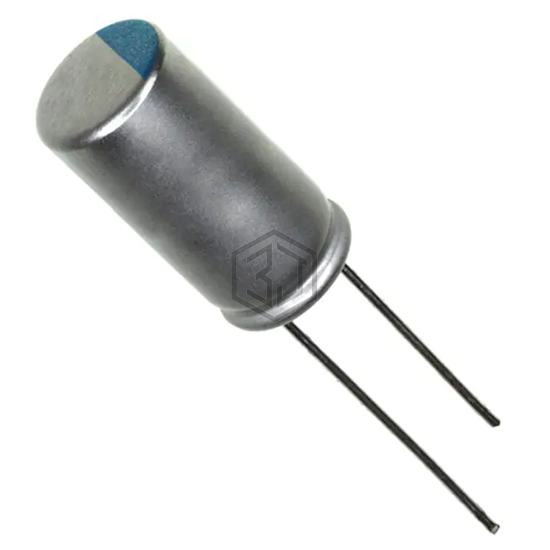

108ULR4R0MGU is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 1000UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 1,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF0G102MDO1 | Nichicon | CAP ALUM POLY 1000UF 20% 4V T/H | 97% | View |
| 108ULR2R5MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1000UF 2.5V T/H | 86% | View |
| UPS0J102MNN0808 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 81% | View |
| APSC2R5ELL102MH08S | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V T/H | 81% | View |
| 108UER016MGU | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1000UF 20% 16V T/H | 75% | View |
| A759MS108M1AAAE012 | KEMET | CAP ALUM POLY 1000UF 20% 10V TH | 72% | View |
Submit your RFQ for 108ULR4R0MGU and get a quote within 24 hours.
