Cornell Dubilier / Illinois Capacitor

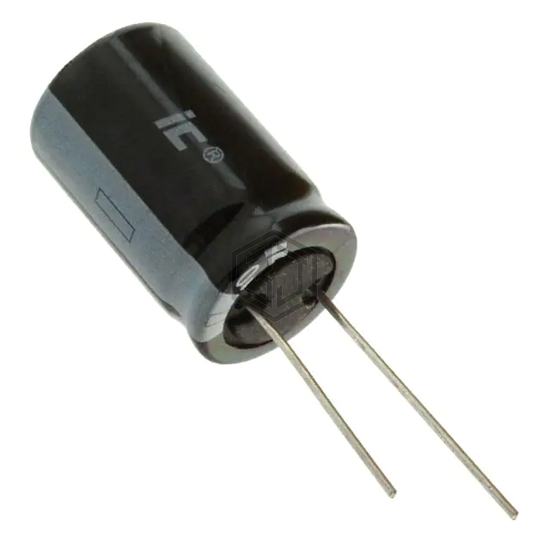

CAP ALUM 1000UF 20% 50V RADIAL
108CKR050M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.114 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204858102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 82% | View |
| LKG1J102MESYCK | Nichicon | CAP ALUM 1000UF 20% 63V SNAP | 80% | View |
| 100MXC1000MEFCSN25X25 | Rubycon | CAP ALUM 1000UF 20% 100V SNAP | 73% | View |
| MAL213817102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 40V AXIAL | 72% | View |
| RXK102M1EBK-1320S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 64% | View |
| MAL214666102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 62% | View |
