Cornell Dubilier / Illinois Capacitor

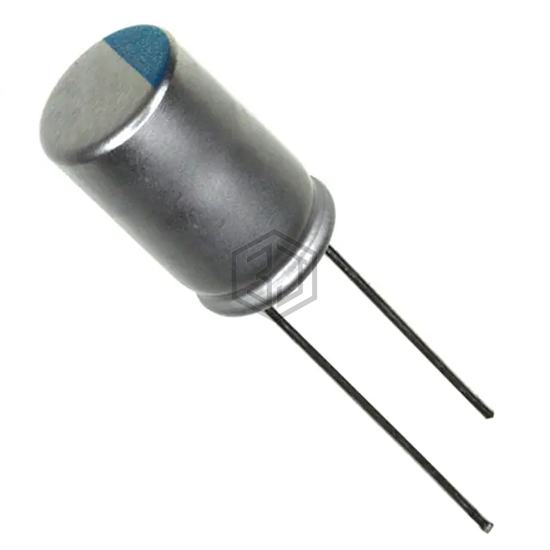

CAP ALUM POLY 100UF 20% 25V T/H
107ULG025MFH is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 100UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 93.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.87 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLX1E820MCL1TD | Nichicon | CAP ALUM POLY 82UF 20% 25V T/H | 88% | View |
| 107ULG020MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 100UF 20% 20V T/H | 79% | View |
| 16SEQP82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 16V T/H | 73% | View |
| PLF1D820MCL2 | Nichicon | CAP ALUM POLY 82UF 20% 20V T/H | 70% | View |
| 107ULR016MEH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 100UF 20% 16V T/H | 68% | View |
| PLF1A101MDL4 | Nichicon | CAP ALUM POLY 100UF 20% 10V T/H | 57% | View |
Submit your RFQ for 107ULG025MFH and get a quote within 24 hours.
