Cornell Dubilier / Illinois Capacitor

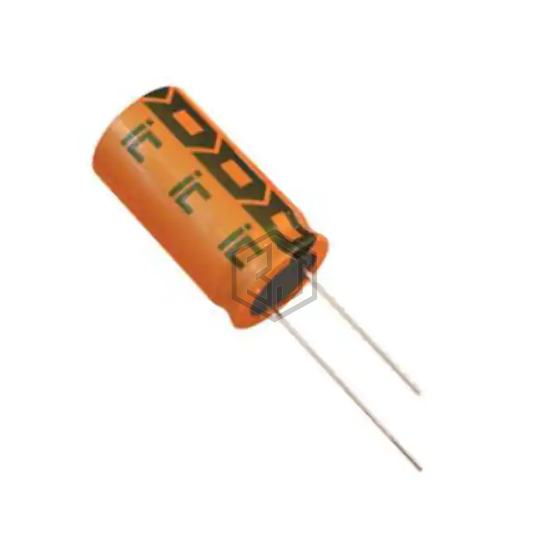

CAP ALUM 100UF 20% 10V RADIAL
107KBM010M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,677
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 3.12Ohm @ 120Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 84 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 100 kHz |
| Impedance | 580 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860130273002 | Würth Elektronik | CAP ALUM 100UF 20% 10V RADIAL | 86% | View |
| 107RZM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 10V RADIAL | 75% | View |
| EKMG160ELL101ME11D | United Chemi-Con | CAP ALUM 100UF 20% 16V RADIAL | 73% | View |
| 6.3YXJ100M5X11 | Rubycon | CAP ALUM 100UF 20% 6.3V RADIAL | 71% | View |
| EEU-EB1J101BJ | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V RADIAL | 58% | View |
| 450CXW100MEFR18X30 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 56% | View |
Submit your RFQ for 107KBM010M and get a quote within 24 hours.
