Cornell Dubilier / Illinois Capacitor
CAP FILM 1UF 10% 1.2KVDC CHAS MT

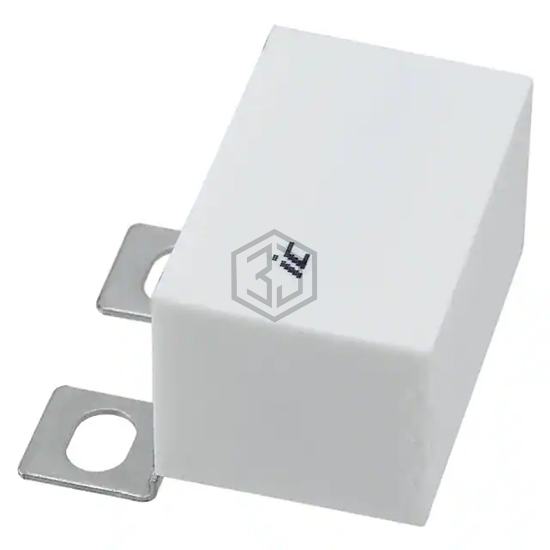

105PMB122KAP1 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1UF 10% 1.2KVDC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Rectangular Box.
In Stock: 5,325
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 630V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.7 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.673" L x 1.102" W (42.50mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Termination | - |
| Lead Spacing | - |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PMB2124100KFRA | Nichicon | FILM CAP BOXED LUGS | 100% | View |
| MKP386M510125JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 1.25KVDC SCREW | 98% | View |
| MKP386M510125JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 1.25KVDC SCREW | 98% | View |
| PMB2154100KFP | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| MKP386M510100JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 1KVDC SCREW | 94% | View |
| SCD105K102D3Z25-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 1KVDC SCREW | 94% | View |
Submit your RFQ for 105PMB122KAP1 and get a quote within 24 hours.
