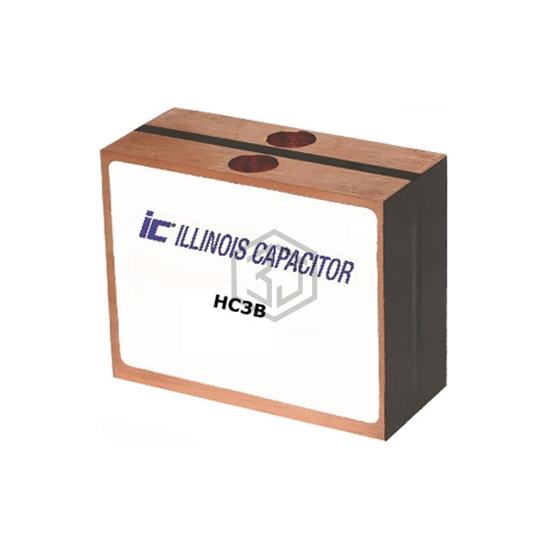

Cornell Dubilier / Illinois Capacitor
CAP FILM 1UF 10% 600VAC CHASSIS
105HC3B600K2SM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1UF 10% 600VAC CHASSIS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 600V, package / case Nonstandard.
In Stock: 7,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.189" W (68.00mm x 30.20mm) |
| Height - Seated (Max) | 2.402" (61.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 105LC3600K5LM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 600VAC SMD | 100% | View |
| SCD105K162A3Z25-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 1.6KVDC SCREW | 99% | View |
| PMB2124100KBN | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| MKP386M510125JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 1.25KVDC SCREW | 98% | View |
| 105HC4700K2UM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 700VAC CHAS MT | 97% | View |
| MKP386M510200YT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 2KVDC SCREW | 97% | View |
Submit your RFQ for 105HC3B600K2SM6 and get a quote within 24 hours.
