Cornell Dubilier / Illinois Capacitor
CAP FILM 1UF 10% 600VAC CHAS MT

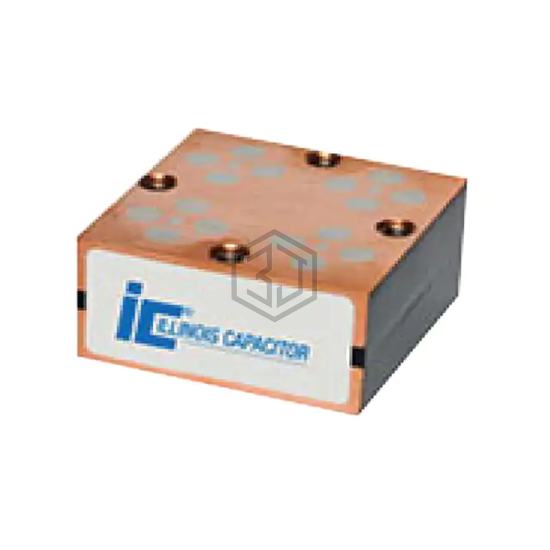

105HC3600K4TM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1UF 10% 600VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 600V, package / case Nonstandard.
In Stock: 2,521
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.362" L x 2.362" W (60.00mm x 60.00mm) |
| Height - Seated (Max) | 1.189" (30.20mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 105LC3600KL505HM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 600VAC SMD | 100% | View |
| SCD105K202A3Z25-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 2KVDC SCREW | 99% | View |
| PMB2124100KFPA | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| PMB2124100KSPA | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| MKP386M510200YT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 2KVDC SCREW | 97% | View |
| MKP386M510200YT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 2KVDC SCREW | 97% | View |
Submit your RFQ for 105HC3600K4TM6 and get a quote within 24 hours.
