FAN BLOWER 53.8X34.3MM 24VDC

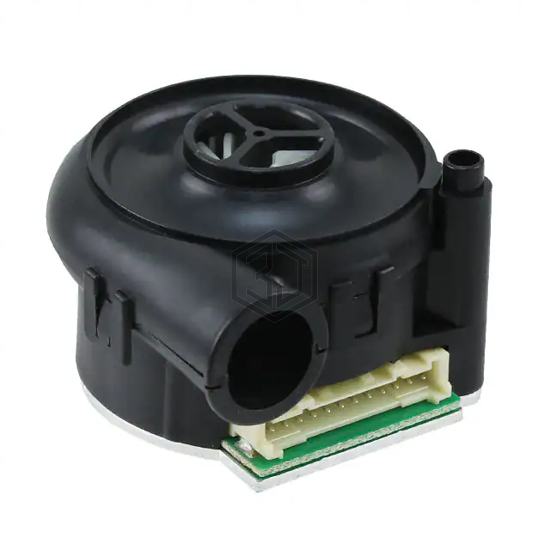

TF037F-2000-F is a DC Brushless Fans (BLDC) manufactured by Nidec Copal Electronics. FAN BLOWER 53.8X34.3MM 24VDC. Key specifications: operating temperature 32 ~ 122°F (0 ~ 50°C), voltage - rated 24VDC, size / dimension Rectangular/Rounded - 53.80mm L x 50.5mm H, termination 12 Position Rectangular Connector.
In Stock: 110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Rectangular/Rounded - 53.80mm L x 50.5mm H |
| Width | 34.30mm |
| Air Flow | 3.5 CFM (0.098m³/min) |
| Static Pressure | 8.030 in H2O (2000.0 Pa) |
| Bearing Type | Aerodynamic |
| Fan Type | Blower, Centrifugal |
| Features | - |
| Noise | 65.0dB(A) |
| Power (Watts) | 16.1 W |
| RPM | 31000 RPM |
| Termination | 12 Position Rectangular Connector |
| Ingress Protection | - |
| Operating Temperature | 32 ~ 122°F (0 ~ 50°C) |
| Approval Agency | - |
| Weight | 0.159 lb (72.12 g) |
Submit your RFQ for TF037F-2000-F and get a quote within 24 hours.
