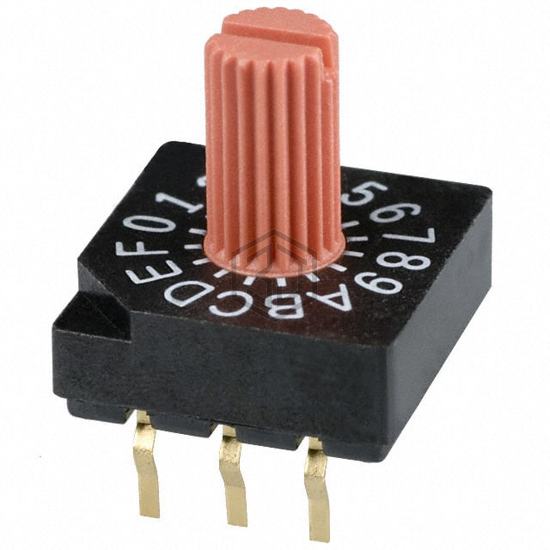

SW ROTARY DIP HEX COMP 100MA 5V
SD-1130 is a DIP Switches manufactured by Nidec Copal Electronics. SW ROTARY DIP HEX COMP 100MA 5V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating 5VDC, contact material Copper Alloy.
In Stock: 2,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | Hexadecimal Complement |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.409" (10.39mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for SD-1130 and get a quote within 24 hours.
