SWITCH TACTILE SPST-NO 0.05A 32V

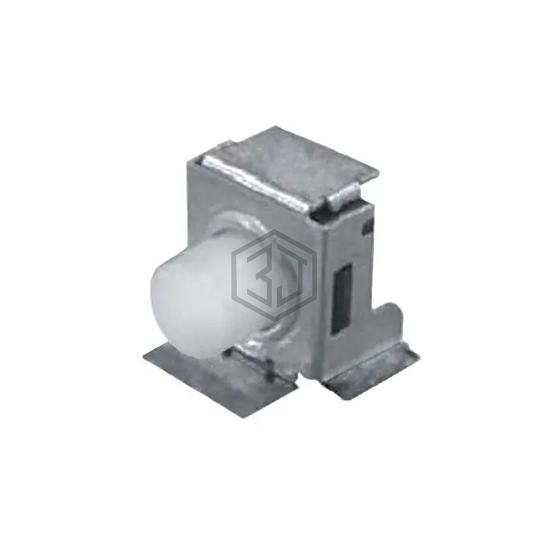

CF-CA-1CB4-P202 is a Tactile Switches manufactured by Nidec Copal Electronics. SWITCH TACTILE SPST-NO 0.05A 32V. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 90°C, termination style SMD (SMT) Tab, circuit SPST-NO.
In Stock: 8,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 7.40mm |
| Actuator Orientation | Side Actuated |
| Termination Style | SMD (SMT) Tab |
| Outline | 7.60mm x 4.40mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 305gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 90°C |
Submit your RFQ for CF-CA-1CB4-P202 and get a quote within 24 hours.
