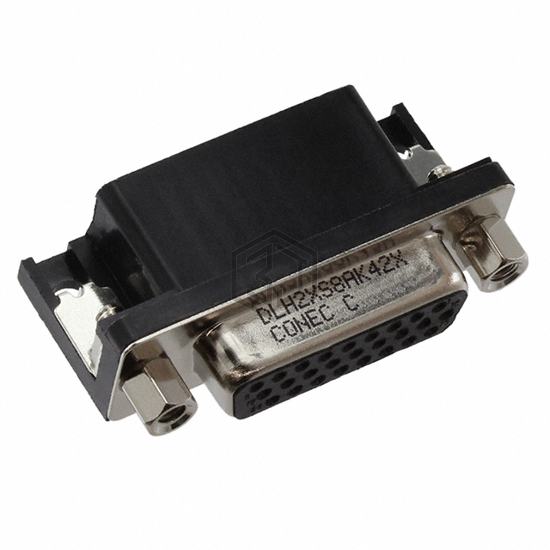

CONN D-SUB HD RCPT 26P R/A SLDR
DLH2XS8AK42X is a D-Sub Connectors manufactured by Conec. CONN D-SUB HD RCPT 26P R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions 26, connector type Receptacle, Female Sockets.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Current Rating (Amps) | - |
| Backset Spacing | 0.346" (8.78mm) |
| Features | Board Lock |
Submit your RFQ for DLH2XS8AK42X and get a quote within 24 hours.
