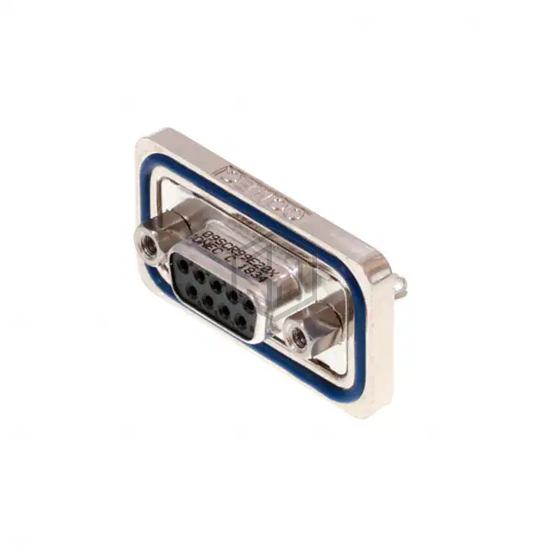

CONN D-SUB RCPT 9POS VERT SLDR
6STD09SCR99E20X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 9POS VERT SLDR. Key specifications: mounting type Through Hole, termination Solder, ingress protection IP67 - Dust Tight, Waterproof, number of positions 9.
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Copper Alloy, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Current Rating (Amps) | - |
| Backset Spacing | - |
| Features | Board Lock |
