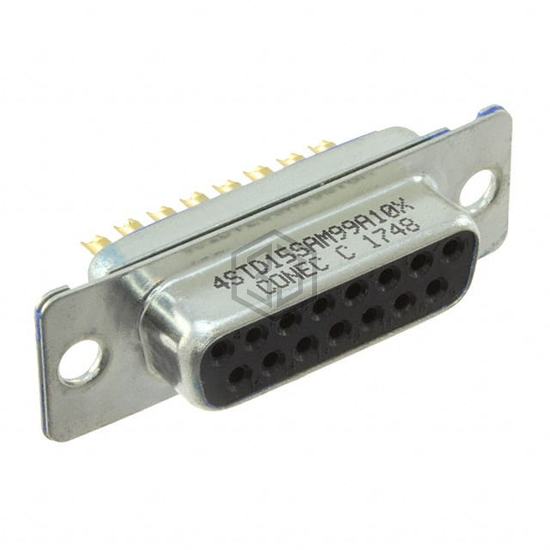

CONN D-SUB RCPT 15POS SLDR CUP
4STD15SAM99A10X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 15POS SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 7.5A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Copper Alloy, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for 4STD15SAM99A10X and get a quote within 24 hours.
