CONN D-SUB RCPT 36POS SLDR CUP

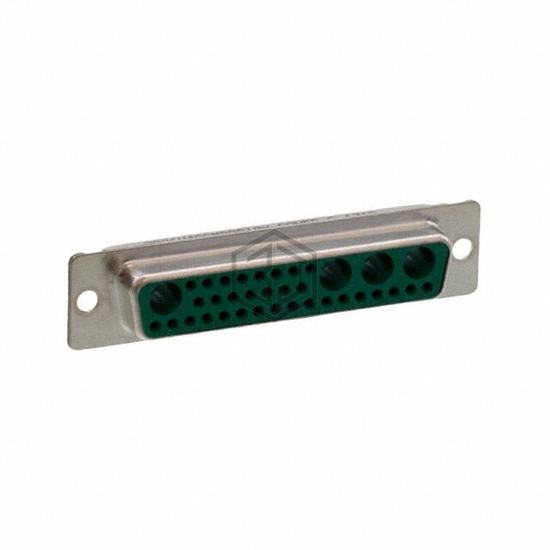

3036W4SCM99A10X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 36POS SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), termination Solder Cup, number of positions 36 (32 + 4 Coax or Power), connector type Receptacle, Female Sockets.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 36 (32 + 4 Coax or Power) |
| Number of Rows | 3 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 5 (DD, D) - 36W4 |
| Contact Type | Signal and Coax or Power (Not Included) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Current Rating (Amps) | - |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for 3036W4SCM99A10X and get a quote within 24 hours.
