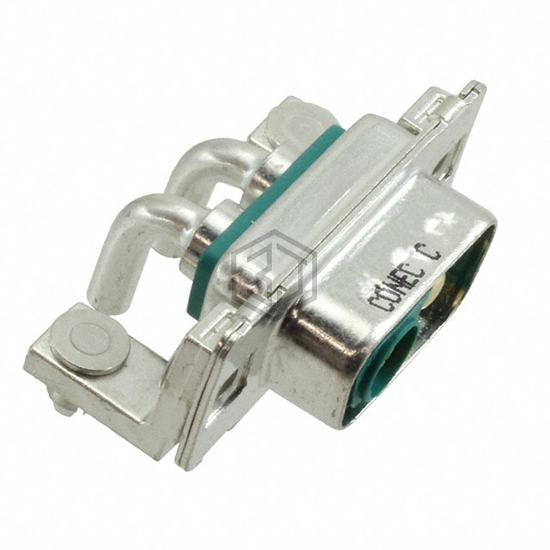

CONN D-SUB PLUG 2POS R/A SLDR
302W2CPXX56N40X is a D-Sub Connectors manufactured by Conec. CONN D-SUB PLUG 2POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions 2 (Power), connector type Plug, Male Pins.
In Stock: 596
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 2 (Power) |
| Number of Rows | 1 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) - 2V2, 2W2C |
| Contact Type | Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Backset Spacing | 0.459" (11.65mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
Submit your RFQ for 302W2CPXX56N40X and get a quote within 24 hours.
