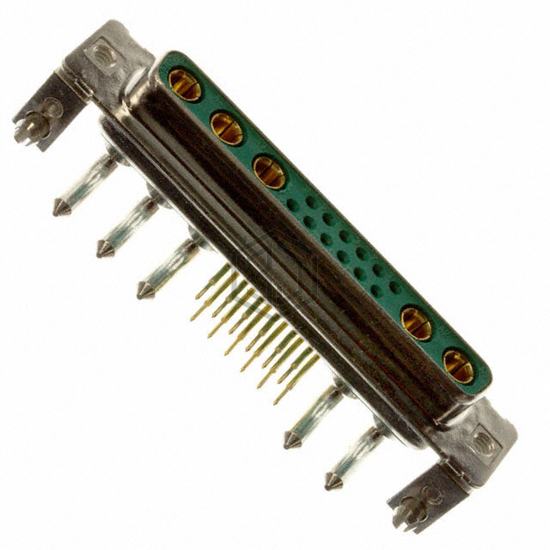

CONN D-SUB RCPT 17POS R/A SLDR
3017W5SCT56N40X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 17POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 5A, 20A, termination Solder, number of positions 17 (12 + 5 Power).
In Stock: 410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 17 (12 + 5 Power) |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) - 17W5 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 20A |
| Backset Spacing | 0.283" (7.20mm) |
| Features | Board Lock, Mounting Brackets |
