CONN D-SUB RCPT 9POS SLDR CUP

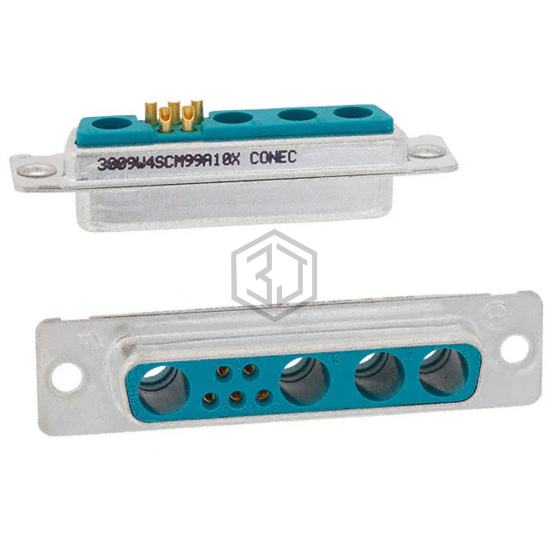

3009W4SCM99A10X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 9POS SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), termination Solder Cup, ingress protection IP20, number of positions 9 (5 + 4 Coax or Power).
In Stock: 659
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 (5 + 4 Coax or Power) |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Contact Type | Signal and Coax or Power (Not Included) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for 3009W4SCM99A10X and get a quote within 24 hours.
